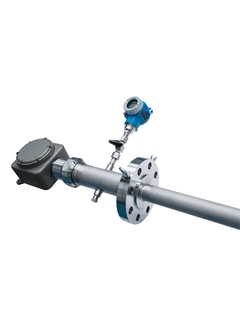

TMS12 iTHERM TMS12 MultiSens Linear Multipoint
Field of application
The iTHERM TMS12 MultiSens Linear multipoint thermometer for oil & gas and chemical applications can be customized for various scenarios in compliance with the highest safety standards. It increases process safety by creating detailed linear temperature profiles and features a diagnostic chamber to contain and monitor leakages through the primary seals. Easy process integration reduces installation time and thus maximizes plant availability.
-
Oil & Gas industry
-
Heavy chemical processes
-
Petrochemical industry
Benefits
-
Primary thermowell for superior mechanical strength and an easy replacement of individual inserts, which are available either with TC or RTD technology
-
Increased safety thanks to a diagnostic chamber able to contain the process in the event of leakages through the primary seals
-
Compliance to various safety standards (such as but not limited to ATEX, PED), electrical and Pressure Directive for easy process integration
-
High degree of customization thanks to a modular product design for maximum flexibility, easy installation and maintenance
-
On board electronic heat protection for long product lifetime
-
Superior mechanical strength and sensors replaceability thanks to a primary thermowell
-
Measuring principle
Resistance Temperature Detector
-
Characteristic / Application
metric style
imperial style
easy-to-use
suitable for hazardous areas
process connection: flanged
light chemical processes
linear sensor distribution
modular design
replaceable sensors during operation
diagnostic chamber -
Thermowell / protection tube
with one primary thermowell (for replaceable sensors and increased mechanical protection)
-
Insert / probe
mineral insulated (MI) sensors in a primary thermowell
-
Outer diameter protection tube / Insert
48,3mm (1 1/2")
60,3mm (2")
76,1mm (2 1/2")
88,9mm (3") -
Max. immersion length on request
up to 15.000,00 mm (590'')
-
Material protection tube/ thermowell
1.4401 (316)
1.4435 (316L)
1.4541 (321)
1.4845 (310L)
1.4301 (304)
1.4307 (304L) -
Process connection
flange:
1 1/2" ASME/ANSI B16.5 150
...900
2" ASME/ANSI B16.5 150
...900
3" ASME/ANSI B16.5 150
..900
DN40 EN/DIN 1092.1 PN10
...PN150
DN50 EN/DIN 1092.1 PN10
...PN150
DN80 EN/DIN 1092.1 PN10
...PN150 -
Tip shape
straight
-
Operating temperature range
Type K:
max. 1.070 °C
(max. 1.958 °F)
Type J:
max. 520 °C
(max. 968 °F)
Type N:
max. 1.100 °C
(max. 2.012 °F)
Pt100 WW:
-200...600 °C
(-328…1.112 °F)
Pt100 TF:
-50…400 °F
(-58…752 °F) -
Max. process pressure (static)
at 20 °C: 240 bar (3481 psi)
-
Accuracy
class 1 acc. to IEC 60584
class Special ASTM E230 and ANSI MC 96.1
IEC60751 Class A
IEC60751 Class AA -
Response time
depending on configuration:
TC:
t50 = 21 s
t90 = 52 s
RTD:
t50 = 42 s
t90 = 108 s -
Integration head transmitter
yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)
-
Ex - approvals
ATEX
IECEX
UL
FM
CSA -
Certification
SIL (transmitter only)
