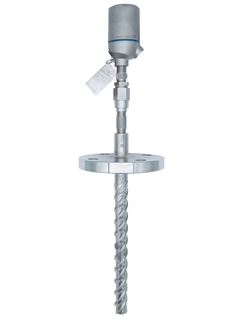

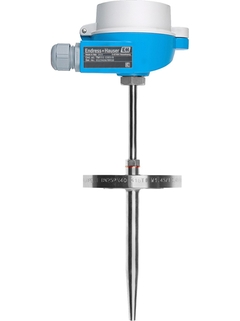

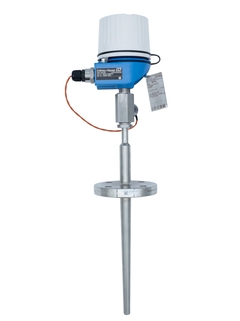

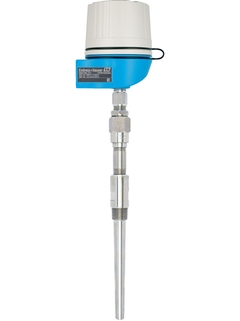

TM151 iTHERM ModuLine

Field of application

Modular industrial RTD or TC thermometer, complete with barstock thermowell or to be used with onsite thermowell. Available with Endress+Hauser temperature transmitters for enhanced accuracy and reliability - easy customizing by choosing the outputs and communication protocols. Optionally available with Bluetooth® connectivity. Thermometer featuring latest innovations such as iTHERM QuickNeck, and temperature sensor technologies like iTHERM QuickSens and iTHERM StrongSens.

• Universal range of application

• Measuring range: –200 to +1.100 °C (–328 to +2.012 °F)

• Pressure range up to 500 bar (7.252 psi)

• Vibration-resistant sensor element up to 60g

• Improved ease of maintenance (sensor replacement without process shutdown), easy and safe recalibration of the measuring point

Benefits

• Second process seal with failure indication offering valuable device health status information

• iTHERM QuickSens: fastest response times of 1.5 s for optimum process control

• iTHERM StrongSens: unsurpassed vibration resistance (> 60g) for ultimate plant safety

• iTHERM QuickNeck: cost and time savings thanks to simple, tool-free recalibration

• Bluetooth® connectivity (optional)

• International certification: explosion protection according to ATEX, IECEx, CSA C/US and CCC

• Measuring principle

  Resistance Temperature Detector

• Characteristic / Application

  metric style
  modular temperature assembly
  universal range of application
  suitable for hazardous areas
  suitable for high process pressures
  with neck or QuickNeck
  incl. thermowell / protection tube (metal) or to be installed into thermowell
  can be used with StrongSens

• Thermowell / protection tube

  barstock (drilled) or to be used with thermowell

• Insert / probe

  mineral insulated (MI), flexible

• Outer diameter protection tube / Insert

  16 mm (0,63")
  18 mm (0,71")
  19 mm (0,75")
  19,5 mm (0,77")
  20 mm (0,79")
  22,2 mm (0,87")
  24 mm (0,95")
  25 mm (0,98")
  25,4 mm (1,0")
  26 mm (1,02")
  27 mm (1,06")
  30 mm (1,18")
  33,4 mm (1,31")

• Max. immersion length on request

  up to 1.500,0 mm (59,06'')

• Material protection tube/ thermowell

  316 (1.4401)
  316L (1.4404)
  316/316L (1.4401/1.4404)
  316Ti (1.4571)
  347 (1.4550)
  310 (1.4841)
  Alloy 600 (2.4816)
  Alloy C276 (2.4819)
  10CrMo9-10 (1.7380)
  13CrMo4-5 (1.7335)
  16Mo3 (1.5415)
  A105 (1.0460)
  C22.8 (P250GH) (1.0460)
  P355NH (1.0565)
  Duplex S32205 (1.4462)
  Titanium Gr2 (3.7035)

• Process connection

  Male thread:
  G1"
  NPT1/2", NPT3/4", NPT 1"
  M14x1.5, M18x1.5, M20x1.5, M27x2, M33x2
  Female thread:
  M24x1.5
  NPT1/2"
  Flange:
  DN25 PN16, PN40, PN50, PN100 B1
  DN40 PN40 B1
  DN50 PN40, PN63 B1
  ASME 1" 150 RF
  ASME 1" 300 RF
  ASME 1" 600 RF
  ASME 1" 900/1500 RF
  ASME 1 1/2" 150 RF
  ASME 1 1/2" 300 RF
  ASME 1 1/2" 600 RF
  ASME 1 1/2" 900/1500 RF
  ASME 1 1/2" 2500 RF
  ASME 2" 150 RF
  ASME 2" 300 RF
  ASME 2" 600 RF
  ASME 2" 900/1500 RF
  ASME 2" 2500 RF
  to weld-in:
  Diameter 18 mm (0,71")
  Diameter 24 mm (0,94")
  Diameter 26 mm (1,02")
  Diameter 26,7 mm (NPS 3/4")
  Diameter 33,4 mm (NPS 1")

• Tip shape

  straight
  tapered
  stepped

• Surface roughness Ra

  0,76 μm (30 μin.)
  1,6 μm (63,0 μin.)

• Operating temperature range

  PT100 TF StrongSens:
  -50 °C ...500 °C
  (-58 °F ...932 °F)
  PT100 QuickSensTF:
  -50 °C …200 °C
  (-58 °F …392 °F)
  PT100 WW:
  -200 °C ...600 °C
  (-328 °F ...1.112 °F)
  PT100 TF:
  -50 °C ...400 °C
  (-58 °F ...752 °F)
  Typ K:
  max. 1.100 °C
  (max. 2.012 °F)
  Typ J:
  max. 800 °C
  (max. 1.472 °F)
  Typ N:
  max. 1.100 °C
  (max. 2.012 °F)

• Max. process pressure (static)

  depending on the configuration up to 500 bar

• Accuracy

  Class AA acc. to IEC 60751
  Class A acc. to IEC 60751
  Class B acc. to IEC 60751
  Class special or standard acc. to ASTM E230
  Class 1 or 2 acc. to IEC 60584-2

• Response time

  depending on configuration

• Integration head transmitter

  yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)

• Ex - approvals

  ATEX II3G Ex nA IIC T6, II3D
  CSA C/US General Purpose
  CSA C/US IS, NI I/1+2/A-D
  CSA C/US XP, NI, DIP I, II, III/1+2/A-G
  CSA C/US DIP II, III / 1/E-G
  EAC 0Ex ia IIC T6...T1 Ga X
  EAC Ga/Gb Ex d IIC T6...T1 X
  EAC Ex ta/tb IIIC 85oC...450oC Da/Db X
  EAC Ga/Gb Ex ia IIC T6...T1 X
  EAC 0Ex ia IIC T6...T1 Ga X, Ex ia IIIC 85oC...450oC Da/Db X
  EAC Ga/Gb Ex d IIC T6...T1 X, Ex ta/tb IIIC 85oC...450oC Da/Db X
  INMETRO Ex ia IIC T6 Ga/Gb, Ex ia IIIC Da/Db
  INMETRO Ex d IIC T6 Ga/Gb, Ex tb IIIC Da/Db
  INMETRO Ex nA IIC T6 Gc
  CCC Ex ia IIC T6 Ga/Gb
  CCC Ex d IIC T6 Ga/Gb, Ex tD A20/A21
  CCC Ex tD A20/A21
  CCC Ex nA IIC T6 Gc
  UK II1/2G Ex ia IIC T6 Ga/Gb, II1/2D Ex ia IIIC Da/Db
  UK II3G Ex nA IIC T6 Gc, II3D Ex tc IIIC Dc
  UK II1/2G Ex db IIC T6 Ga/Gb, II1/2D Ex ta/tb IIIC Da/Db
  ATEX IECEx II1/2D Ex ta/tb IIIC Da/Db
  ATEX IECEx II1/2G Ex ia IIC T6 Ga/Gb
  ATEX IECEx II1/2G Ex ia IIC T6, II1/2D
  ATEX IECEx II1/2G Ex db IIC T6, II1/2D

• Certification

  SIL, MID, DNV/GL
