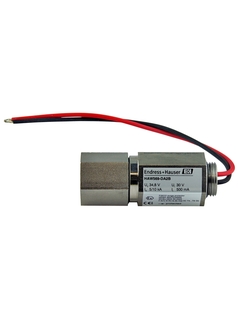

HAW569 Surge arresters

ield of application

The HAW569 surge arrester is used to protect electronic components in field devices from being destroyed. It ensures that overvoltage surges which occur in signal cables (e.g. 4 to 20 mA), in communication lines of Field buses (HART, PA, FF) and in power lines are safely passed into the ground. The functionality of the electronic component to be protected is not affected as, using the impedance-free connection of the protection unit, interference voltage drops cannot be introduced.

HAW569 units are primarily used in process automation and in measuring and communication technology within the chemicals, pharmaceuticals, water and wastewater sectors as well as in the food industry.

Benefits

• Compact device for the protection of signal / communication lines (Ex ia approval as an option) or for the simultaneous protection of signal, communication and supply lines (Ex d approval as an option)

• Optionally available with SIL2 intrinsically safe approvals

• Measuring principle

  Surge arrester

• Function

  Surge arrester for field installation
  Easy and space-saving mounting directly at the field transmitter
  Combined protection of sensor cables and supply lines in one device (especially for 4-wire transmitters)
  Flexible integration into the measuring chains of the process industry due to approvals according to ATEX & IEC, SIL2 conformity
  Compatibility with the established fieldbusses (HART, FF, PA)
  Uninterruptible operation of the plant due to an automatic resetting after the discharge process

• Certification

  ATEX/IEC Ex ia for lead through version
  ATEX/IEC Ex d for screw in version

• Dimensions (wxhxd)

  HAW569-xA2B: (lead through version)
  Diameter AF/SW27, internal and external thread M20x1.5, length 77 mm (3.03")
  HAW569-CB2C: (screw in version)
  Diameter AF/SW27, external thread M20, length 83 mm (3.27")

• Operating Voltage

  24V/120V/230V
