SMT70 Field Xpert

Field of application

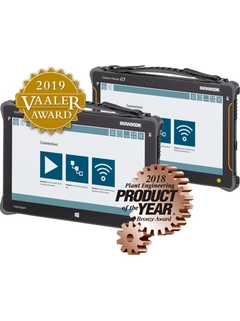

The Field Xpert SMT70 tablet PC for device configuration enables mobile plant asset management in hazardous (Ex zone 2) and non-hazardous areas. It is suitable for commissioning and maintenance staff to manage Endress+Hauser and third-party field instruments with a digital communication interface and documents the progress of the work.

The SMT70 is designed as a complete solution, comes with a pre-installed driver library and is an easy-to-use, touch-enabled tool for managing devices throughout their entire life cycle.
Tip: The Netilion Library application is a valuable addition to Field Xpert. Netilion Library stores and manages all documents created with Field Xpert in the Endress+Hauser Cloud. So everything is secure, up-to-date and available everywhere.

Benefits

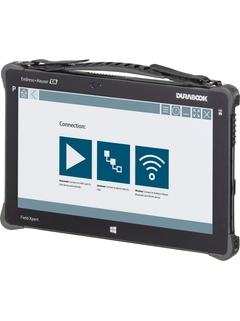

• High-performance, robust tablet with large 11.6" display and a battery runtime of up to 14 hours.

• Touch-enabled device configuration software for optimized asset management.

• Direct link to Netilion, Endress+Hauser's IIoT ecosystem.

• Pre-installed device driver libraries for all of the important industrial protocols.

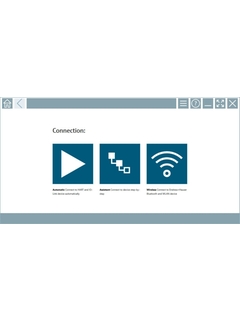

• Fast connection to devices with a single click thanks to automatic hardware detection. Online application software and DTM/driver update service offer new functionality and maximum security.

• Integrated Heartbeat Verification incl. PDF documentation.

• Connection to Endress+Hauser Bluetooth and WLAN devices- perfect for difficult-to-access instruments.

• Measuring principle

  Device configurator

• Function

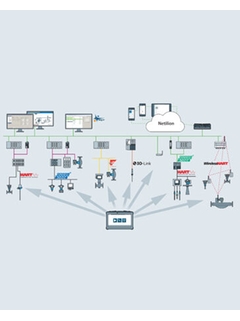

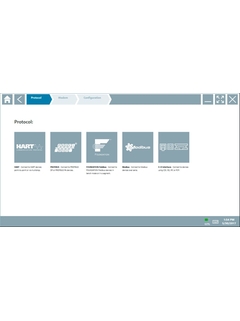

  The Field Xpert SMT70 tablet PC for universal device configuration supports protocols such as HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus, and Endress+Hauser service protocols (CDI, ISS, IPC and PCP). The devices can be connected directly via a suitable interface e.g. a modem (point-to-point) or a bus system (point-to-bus).

• Input

  Camera:
  • 5 MP camera on the back with auto focus and LED flash with 1500 mcd
  • 2 MP camera on the front
  Scanner:
  • 1D/2D barcode scanner

• CPU

  Intel Core i5-5200U (2,2...2,7 GHz)

• Memory

  • 8 GB with DDR3L adapter
  • 256 GB SSD M2-SATA robust version
  • Micro SD card slot, support for SDHC/SDXC

• Power supply

  Replaceable, rechargeable lithium polymer battery, 11.1 VDC,
  4100 mAh (45 Wh)/7800 mAh (86 Wh) (optional)

• Dimensions (WxHxD)

  298.5 mm x 192 mm x 20 mm
  (11.4 in x 7.48 in x 0.78 in)

• Screen size

  • 11.6" LCD display, with Gorilla Glass protector
  • Capacitive multi-touch screen
  • Optical bonding, sunlight readable, LCD (730 Nit)
  • Ambient light sensor

• Resolution

  1366 x 768 pixels

• Communication interface

  • 2 x USB 3.0
  • Intel Wireless AC7260 802.11 a/b/g/n/ac, DUAL Band WLAN
  • Bluetooth 4.0 BLE, Class 1
  • 4G LTE WWAN + 12 channel GPS (optional)

• Operation

  Operating system:
  Windows 10 IoT Enterprise

• Configuration

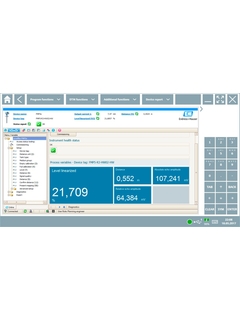

  Touch-enabled device configuration software optimized for Field Xpert. The software supports protocols such as HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus, and Endress+Hauser service protocols (CDI, ISS, IPC and PCP) and includes more than 2,700 pre-installed device and communication drivers.

• Optional

  4G LTE WWAN + 12 channel GPS

• Certificates

  Degree of protection:
  • IP65
  Shock resistance:
  • MIL-STD 810G 516.6 Procedure IV
  Electromagnetic Compatibility:
  Interference conformance to
  • EN 55022: 2010+ AC: 2011
  • EN 55022 Class B
  • EN 61000-3-2
  • EN 61000-3-3
  Interference immunity to
  • EN 55024: 2010
  • IEC 61000-4-2
  • IEC 61000-4-3
  • IEC 61000-4-4
  • IEC 61000-4-5
  • IEC 61000-4-6
  • IEC 61000-4-8
  • IEC 61000-4-11
  Hazardous area approval:
  ATEX (Europe)
  • ATEX II 3G Ex ic IIC T4 Gc IP64
  • ATEX II 3D Ex ic IIIB T135°C Dc IP 64
  NEC/CEC (North America)
  • NEC/CEC Class 1, Div. 2, Group A-D T4
  • NEC/CEC Class 1, Zone 2, Group IIC T4
  IECEx (International)
  • IECEx Ex ic IIC T4 Gc IP64
  • IECEx Ex ic IIIB T135° Dc IP64
  Radio approval:
  • CE, FCC, IC
