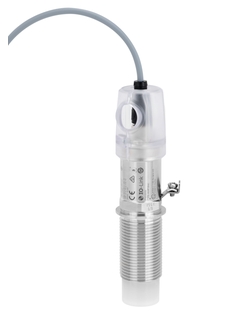

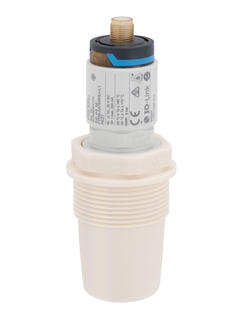

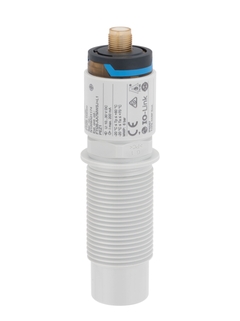

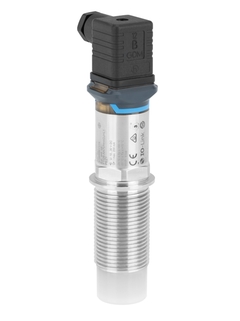

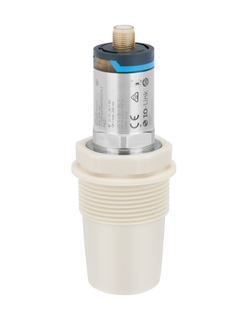

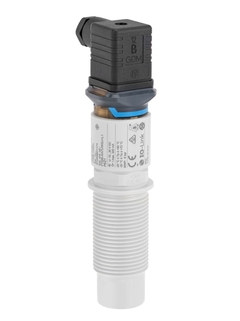

FTI26 Capacitance Point level detection Nivector

For all types of powdered and fine-grained solids especially in the food industry

Field of application

The Nivector FTI26 is a cost-efficient point level switch for solids in the food industry and powder applications in all industries. The capacitance device convinces with the best build-up performance in class and a high sensitivity. All industry compliant certificates are available. In addition, the FTI26 is industry 4.0 ready with IO-Link communication.

For MIN or MAX detection in silos with powdered and fine-grained solids, like plastic granules, grain, sugar, spices, coffee powder, laundry detergent

  • Process connections: G1" thread, Tri-Clamp 2" via adapter

  • Temperature: -20 to +80°C (-4 to +176°F)

  • Pressure: -1 to +6bar (-14.5 to +86psi)

  • International explosion protection certificates (Dust Ex), hygienic certificates

Benefits

  • Easy installation even in tight conditions or where access is restricted thanks to the compact design

  • Fulfillment of all relevant hygienic requirements (3A, EHEDG, FDA, EG1935/2004); cleanable (IP69)

  • IO-Link reduces costs and complexity with an easy configuration of the devices via engineering tools

  • Best build-up performance in class and high sensitivity

  • No individual adjustment to each medium necessary

  • LED signalization for on-site function check

  • Measuring principle

    Capacitive Solid

  • Characteristic / Application

    Compact for all types of powdered solids / small-grain bulk
    solids

  • Specialities

    Active build-up compensation

  • Supply / Communication

    12 V...30 VDC

  • Ambient temperature

    -20°C...60°C
    (-4°F...140°F)

  • Process temperature

    -40°C...80°C
    (-40°F...176°F)

  • Main wetted parts

    PC, ECTFE
    "Protector"
    FDA listed material PBT-GF
    (according to 21 CFR 177.1660)

  • Process connection

    G1

  • Communication

    12 V...30 VDC
    IO-Link

  • Safety approvals

    ATEX, CSA C/US, IEC Ex, EAC Ex

  • Design approvals

    EN 10204-3.1

  • Hygienic approvals

    3-A, EHEDG
