FTM20 Vibronic Point level detection Soliphant

Field of application

Soliphant FTM20 is a point level switch for applications with fine-grained or coarse-grained, non-fluidized bulk solids. The various designs means the device has a wide range of applications. Certificates are also available for use in dust and hazardous areas.

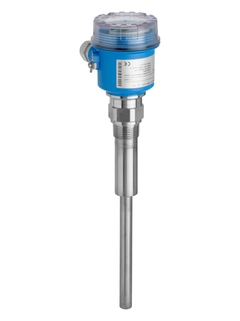

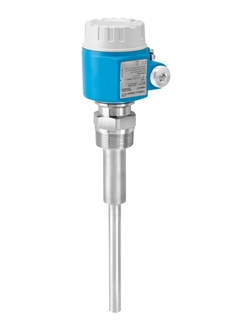

Point level switch in compact design with stainless steel housing.

• Process connections: Threads

• Temperature: -40 to +150°C (-40 to +302°F)

• Pressure: -1 to +40bar (-14.5 to +580psi)

• International explosion protection certificates, marine approvals

Benefits

• Operational safety, reliability and universal applicability through use of the tuning fork measuring principle

• Measurement is unaffected by conductivity, build-up, turbulence, flows or air bubbles

• Simple and fast commissioning, no calibration required

• No mechanically moved parts, free of maintenance

• Safe function due to self-monitoring (active frequency monitoring of the fork)

• Easy recurring function test via test magnet

• Suitable for constricted space due to compact design

• Measuring principle

  Vibration Solids

• Characteristic / Application

  Compact point level switch for fine grained solids
  Grain size <= 25 mm (<= 0.98 in)
  Single rod
  No calibration required
  Not affected by build-up or external vibration
  Robust
  Switch value visible from outside

• Supply / Communication

  10 - 45V DC
  19 - 253 VAC relay
  DC PNP 10 - 45 V

• Ambient temperature

  -40°C ... 70°C
  (-40 °F ... 160 °F)

• Process temperature

  -40°C ... 150°C
  (-40°F ... 300°F)

• Process pressure / max. overpressure limit

  Vacuum ... 25 bar
  (Vacuum ... 360 psi)

• Min. density of medium

  200 g/l

• Main wetted parts

  316L

• Process connection

  Thread
  R 1"
  R 1 1/2"
  1 1/4" NPT
  1 1/2" NPT

• Sensor length

  225 mm (9")

• Communication

  DPDT relay
  DC PNP max 350mA

• Certificates / Approvals

  ATEX, FM, CSA, CSA C/US, IEC Ex, NEPSI, INMETRO, EAC
