FMU95 Ultrasonic measurement Time-of-Flight Prosonic FMU95

Field of application

Prosonic FMU95 separated version with field housing or top hat rail housing for control cabinet instrumentation are suited for continuous, non-contact level measurement of fluids, pastes, sludge and powdery to coarse bulk solids.

Continuous, non-contact level measurement of fluids, pastes, sludge and powdery to coarse bulk materials with up to 5 or 10 ultrasonic sensors.

• Measuring range up to 45m (148ft) (depending on sensor and material measured)

• Calculation of average values or sums

Benefits

• Simple, menu-guided operation with 6-line plain text display, 15 languages selectable

• Envelope curves on the display for quick and simple diagnosis

• Easy operation, diagnosis and measuring point documentation with the supplied "FieldCare" operating program

• Time-of-Flight correction via integrated or external temperature sensors

• Linearization (up to 32 points, freely configurable)

• System integration via PROFIBUS DP with up to 20 measured values

• Automatic detection of the sensors FDU9x

• Measuring principle

  Ultrasonic

• Characteristic / Application

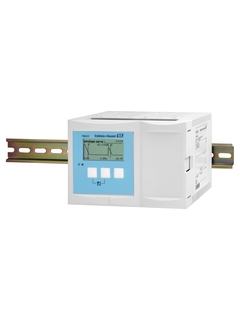

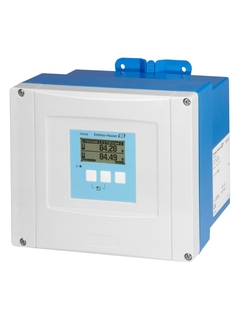

  Separated version with Field housing or top hat rail housing for control cabinet instrumentation, 5 or 10 channel version

• Specialities

  Protection Class IP 66 / NEMA 4x
  automatic sensor recognition of FDU9x sensors

• Supply / Communication

  90 ... 253 VAC
  10.5 ... 32 VDC
  Profibus DP

• Accuracy

  +/- 2mm + 0.17% of measured distance

• Ambient temperature

  -40 °C ... 60 °C
  (-40 °F ... 140 °F)

• Communication

  Profibus DP

• Certificates / Approvals

  ATEX, CSA

• Options

  Illuminated display, 6 line graphic display with country specific menu guidance, on-site diagnosis with envelope curve on display

• Components

  Sensors FDU9x
