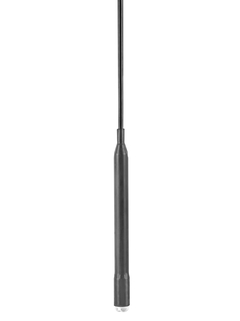

FMX21 Hydrostatic Level measurement Waterpilot

Field of application

The Waterpilot FMX21 transmitter with capacitive, oil-free ceramic measuring cell is typically used in the process and environmental applications for hydrostatic level measurement. With HART output, the measuring ranges can be freely adjusted and a density-compensated level measurement can be activated. It is certified for drinking water and offers integrated temperature measurement. Versions for applications in wastewaters and sludges or usage in salt water are also available.

Three different versions for drinking water, wastewater and sewage, saltwater.

• Process connections: Suspension clamp, cable gland

• Temperature: –10 to +70°C (14 to 158°F)

• Measuring range: 0 to 20bar / 200m H₂0 (0 to 300psi / 600ft H₂O)

• Accuracy: ±0.2%, "Platinum" ±0.1%

• International explosion protection certificates, marine approvals, drinking water approval

Benefits

• Robust overload-resistant high purity ceramic sensor (99.9% Al₂O₃)

• Flexible scaling of 4 to 20mA with superimposed HART 6.0 output

• Highest level accuracy using temperature compensated density correction

• Simultaneous measurement of level and temperature with optionally integrated Pt100 temperature sensor

• Extensive range of accessories provides complete measuring point solutions

• Climate proofed sensor thanks to completely potted electronics and 2-filter pressure compensation system

• Small outer diameter of 22mm (0.87") version suitable for drinking water applications and for use in bore holes and wells with small diameters

• Measuring principle

  Hydrostatic pressure

• Characteristic

  Compact probe with ceramic cell for hydrostatic level measurement,
  Diameter = 22 mm: General applications, fresh water
  Diameter = 42 mm: Waste water applications
  Diameter = 29 mm: Salt water applications

• Supply voltage

  10.5 ...35V DC

• Reference Accuracy

  0.2%
  0.1% (optional)

• Long term stability

  0.1% of URL/year

• Process temperature

  -10°C...70°C
  (14°F...158°F)
  Diameter 29 mm (1.14"): 0°C...50°C
  (32°F...122°F)

• Ambient temperature

  -10°C...70°C
  (14°F...158°F)
  Diameter 29 mm (1.14"):
  0°C...50°C
  (32°F...122°F)

• Measuring cell

  100mbar...20bar
  (1.5psi...300psi)

• Process connection

  Suspension clamp
  Cable mounting screws

• Communication

  4...20 mA
  4...20 mA HART

• Certificates / Approvals

  ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI, UK Ex

• Marine approvals

  GL/ ABS/ BV/ DNV/ LR

• Drinking water approvals

  NSF/ KTW/ ACS
