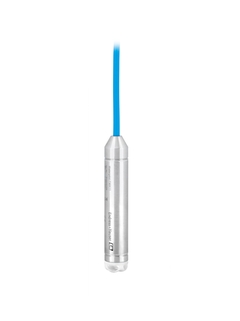

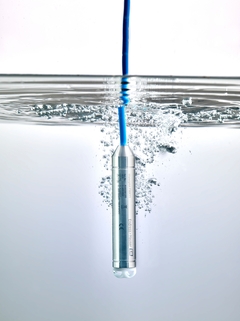

FMX11 Hydrostatic Level measurement Waterpilot

Field of application

The Waterpilot FMX11 transmitter is typically used in environmental applications for hydrostatic level measurement. It is certified for drinking water applications and can be used in wells, storage tanks, water towers, dams, gauging stations, lakes and rivers.

• Temperature: –10 to +70°C (14 to 158°F)

• Measuring range: 0 to 2bar / 20m H20 (0 to 30psi / 67ft H₂O)

• Cable length: 6 to 30m

• Accuracy: up to ±0.35%

• Drinking water approvals: ACS, KTW, NSF61, DVGW

• Certifications: cULus

Benefits

• Simple and reliable transmitter for various drinking water applications

• Easy installation, commissioning and operation

• Orderable with flexible measuring ranges and cable lengths tailored to fit your application

• Robust construction for durable long-term services

• Suitable for surface water monitoring in rivers and lakes as well as level monitoring for drinking water production, e.g. in water towers, dams, gauging stations

• Compact size d=22mm (0.87”), makes this an excellent choice for applications in bore holes and small diameter stilling wells.

• Simple specification and ordering

• Measuring principle

  Hydrostatic pressure

• Characteristic

  Compact probe with metallic cell for hydrostatic level measurement
  in fresh water, ground water and potable water storage.

• Supply voltage

  8...28 VDC

• Reference Accuracy

  pn ≥ 400mbar: 0.35 %
  pn < 400mbar: 0.50 %

• Long term stability

  0.1 % of URL/year

• Process temperature

  -10°C...+70°C
  (+14°F...+158°F)

• Ambient temperature

  -10°C...+70°C
  (+14°F...+158°F)

• Measuring cell

  200 mbar...2 bar
  (3 psi...29 psi)

• Process connection

  Suspension clamp
  Cable mounting screws

• Material process membrane

  Metal

• Communication

  4...20 mA

• Drinking water approvals

  NSF, KTW, ACS
