FMB51 Hydrostatic Level measurement Deltapilot

Field of application

The Deltapilot FMB51 is a rod version with a fixed process connection. This device with the Contite measuring cell and is typically used in the environmental industry. It is made for level measurement in liquid and paste-like media in open or closed containers and is unaffected by possible foam formation. For use in SIL2 safety systems.

For level measurement.

• Process connections: Threads and flanges

• Temperature: -10 to +85°C (14°F…185° F)

• Measuring range: 0.1 to 10bar / 100m H₂O (1.5 to 150psi / 300ft H₂O)

• Accuracy: ±0.2%, ±0.1% (option)

• International explosion protection certificates, overfill prevention WHG, SIL, drinking water approval

Benefits

• Hermetically sealed Contite measuring cell with condensate-resistance, high reference accuracy: ±0.2%, optionally ±0.1% and minimum temperature effects

• Modular concept for easy replacement of display or electronics

• Seamless and independent system integration (HART/PA/FF)

• Easy and safe menu-guided operation: On-site via display module, via 4 to 20mA with HART, via PROFIBUS PA, via FOUNDATION Fieldbus

• International usage thanks to a wide range of approvals

• Measuring principle

  Hydrostatic pressure

• Characteristic

  Pressure transmitter for hydrostatic level measurement with flush mounted metallic Contite measuring cell:
  Hermetically sealed, condensate-resistant, climatic-proofed and with lowest temperature influences

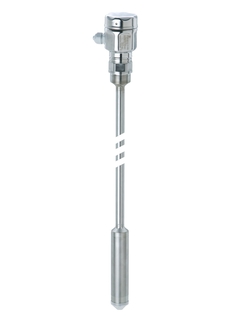

  Rod version

• Supply voltage

  4...20 mA HART
  10,5...45 VDC (Non Ex):
  Ex ia: 10,5...30 VDC
  PROFIBUS PA:
  9...32 VDC (Non Ex)
  FOUNDATION Fieldbus:
  9...32 VDC (Non Ex)

• Reference Accuracy

  Standard 0.2 %
  Optional 0.1 %

• Long term stability

  0.05 % of URL/year

• Process temperature

  -10°C...85°C
  (14°F…212°F)

• Ambient temperature

  -40°C...85°C
  (-40°F...185°F)

• Measuring cell

  100 mbar...10 bar
  (1.5 psi...150 psi)

• Smallest calibratable span

  10 mbar (1.45 psi)

• Vacuum resistance

  0 mbar abs.

• Max. Turn down

  100:1

• Max. overpressure limit

  40 bar (600 psi)

• Process connection

  Thread:
  G1 1/2, MNPT1 1/2
  Flange:
  DN40...DN100,
  ASME 2"...4",
  JIS 10K

• Material process membrane

  316L, AlloyC
  Gold-Rhodium

• Material gasket

  Viton, EPDM, Kalrez, none

• Fill fluid

  Inert oil,
  Synthetic oil

• Material housing

  316L, Die-cast aluminum

• Communication

  4...20 mA HART
  PROFIBUS PA
  FOUNDATION Fieldbus

• Certificates / Approvals

  ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI, UK Ex

• Safety approvals

  Overfill protection WHG
  SIL

• Design approvals

  EN10204-3.1
  NACE MR0175

• Drinking water approvals

  KTW/ NSF

• Specialities

  Modularity to differential pressure and process pressure devices (replacable display, universal electronics)
  Diagnostic functions
