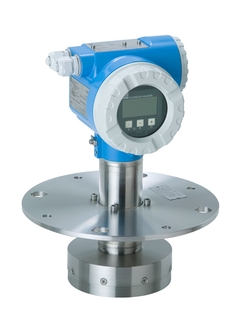

FMR532 Radar measurement Micropilot

Field of application

The Micropilot FMR532 is used for custody transfer and inventory control applications with NMi- and PTB-approvals. It meets the relevant requirements according to OIML R85 and API 3.1B. The FMR532 free space radar with planar antenna is specifically suited for stilling well applications. Micropilot FMR532 offers cost-effective and simple installation via 4-wire cable with HART and 24 V DC intrinsically safe power supply.

With planar antenna particularly suited for stilling well applications with ranges
up to 38m (124ft).

• Process connection: Flange

• Temperature: -40 to +150°C (-40 to +302°F)

• Pressure: Vacuum to +25bar (Vacuum to +362psi)

• Maximum measuring range: 38m (124ft)

• Accuracy: Better than ±1mm

• C-band: 6GHz

• International explosion protection and custody transfer certificates, overfill prevention WHG, SIL, marine approval

Benefits

• 0.8mm accuracy (2σ value)

• National approvals (NMi, PTB) for custody transfer

• Applicable as stand-alone system or integrated into tank gauging systems via the Tank Side Monitor NRF590

• Easy on-site operation via menu-driven alphanumeric display

• Easy commissioning, documentation and diagnostics via FDT/DTM technology (FieldCare)

• Cost-effective and simple installation via 4-wire cable with HART and 24 V DC intrinsically safe power supply

• Unique drip-off antenna design eliminates measurement error due to condensation build-up

• Measuring principle

  Level radar

• Characteristic / Application

  Characteristic / Application

• Supply / Communication

  4-wire (HART)

• Frequency

  C-band (~6 GHz)

• Accuracy

  +/- 1 mm, custody transfer

• Ambient temperature

  Standard:
  -40 °C ... 80 °C
  (-40 °F ... 176 °F)
  For calibration to regulatory standards:
  -25 °C ... 60 °C
  (-13 °F ... 131 °F)

• Process temperature

  -40 °C ... 150 °C
  (-40 °F ... 302 °F)

• Process pressure / max. overpressure limit

  Vacuum ... 25 bar
  (Vaccum ... 362 psi)

• Main wetted parts

  316L + PTFE

• Process connection

  DN150 ... DN300 / 6" ... 12"

• Max. measurement distance

  40 m (131 ft)

• Communication

  4 ... 20 mA

• Certificates / Approvals

  ATEX, FM, CSA, IEC Ex, NEPSI

• Design approvals

  EN 10204-3.1
  NACE MR0175, MR0103

• Marine approval

  GL/ ABS

• Application limits

  Maximum measuring range is dependent on the tank form and/or application
