FMP53 Guided radar measurement Time-of-Flight Levelflex

Field of application

Levelflex FMP53 for continuous level measurement for hygienically sensitive applications in the food and life sciences industry. FMP53 meets the hygiene requirements according to ASME BPE and USP Class VI. The unique in situ validation without dismantling from the process is a cost saving advantage. FMP53 guided radar offers maximum reliability even in case of moved surface and foam, for changing medias and in case of filling via spray head.

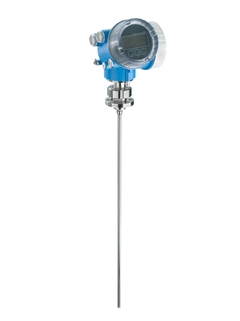

Version with rod probe.

• Process connections: For hygiene requirements (Tri-Clamp, 11851, 11864, NEUMO,
  Varivent N, SMS)

• Temperature: -20 to +150°C (-4 to +302°F)

• Pressure: -1 to +16bar (-14.5 to +232psi)

• Maximum measuring range: Rod 6m (20ft)

• Accuracy: ±2mm (0.12")

• International explosion protection certificates, overfill prevention WHG, SIL, hygienic certificates, 5-point linearity protocol

Benefits

• Reliable measurement even for changing product and process conditions

• HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics

• Highest reliability due to new Multi-Echo Tracking evaluation

• Hardware and software developed according to IEC 61508 up to SIL3

• Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle

• Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)

• World's easiest proof test for SIL and WHG saves time and costs

• Measuring principle

  Guided radar

• Characteristic / Application

  Premium device. Hygiene
  Rod probe,
  ASME BPE + USP Class VI compliant, Integrated data memory, Factory precalibrated, Reliable measuring: in case of moved surface + foam, for changing medias, for filling via spray head.

• Specialities

  Heartbeat Technology,
  Bluetooth® commissioning,
  Operation and maintenance SmartBlue App,
  HistoROM,
  RFID TAG for easy identification

• Supply / Communication

  2-wire (HART / PROFIBUS PA/ FOUNDATION Fieldbus)
  4-wire (HART)
  Bluetooth® wireless technology and App (optional)

• Accuracy

  Rod probe:+/- 2 mm (0.08 in)

• Ambient temperature

  -20...+80 °C
  (-4...+176 °F)

• Process temperature

  -20...+150 °C
  (-4...+302 °F)

• Process pressure / max. overpressure limit

  Vacuum...16 bar
  (Vacuum...232 psi)

• Main wetted parts

  Rod probe:
  304, 304L, 316L, PEEK

• Process connection

  Thread:
  M24

• Process connection hygienic

  Tri-Clamp
  DIN11851
  DIN11864-1
  NEUMO
  Varivent N
  SMS

• Sensor length

  Rod probe: 6 m (20 ft)

• Max. measurement distance

  Rod: 6 m (20 ft)
  Min DK>1.6

• Communication

  4...20 mA HART
  PROFIBUS PA
  FOUNDATION Fieldbus
  Bluetooth® wireless technology

• Certificates / Approvals

  ATEX, FM, CSA C/US, IEC Ex, INMETRO, NEPSI, KC, EAC, UK Ex

• Safety approvals

  Overfill protection WHG
  SIL

• Design approvals

  EN 10204-3.1

• Hygienic approvals

  3A, EHEDG
  CoC ASME-BPE

• Options

  Sensor remote with 3 m/9 ft or 6 m/18 ft cable,
  Weld-in adpater,
  Remote operation via SmartBlue App using Bluetooth®

• Application limits
