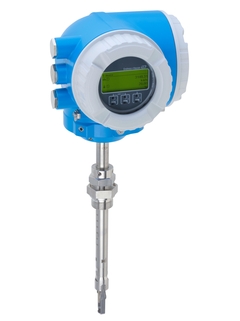

6I3B Proline t-mass I 300 thermal mass flowmeter

Field of application

The patented sensor design of t-mass I provides unprecedented measurement stability in thermal insertion mass flow measurement. It compensates in real time for changes of process conditions: temperature, pressure, flow direction and gas type. Its compact transmitter offers high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology ensures measurement reliability and compliant verification.

• Measuring principle is characterized by a high operable flow range and direct mass flow measurement

• Measurement of utility and process gases and gas mixtures in circular piping or rectangular ducts

Device properties

• Insertion version for DN 80 to 1500 (3 to 60")

• Bidirectional measurement; high measuring performance

• Patented drift-free sensor with SIL 2

• Compact dual-compartment housing with up to 3 I/Os

• Backlit display with touch control and WLAN access

• Remote display available

Benefits

• Flexible, convenient programming based on 21 standard gases or freely definable gas mixtures thereof

• High level of process control – premium measurement accuracy and repeatability

• Reliable monitoring – detection of process disturbances and reverse flow

• Flexible installation – suitable for large dimensional range and circular pipes or rectangular ducts

• Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses

• Reduced complexity and variety – freely configurable I/O functionality

• Integrated verification – Heartbeat Technology

• Measuring principle

  Thermal

• Product headline

  Insertion flowmeter with long-term stability and a compact, easily accessible transmitter.
  Flexible, convenient programming based on 21 standard gases or freely definable gas mixtures thereof.
  Measurement of utility and process gases as well as gas mixtures in circular piping or rectangular ducts.

• Sensor features

  High level of process control – premium measurement accuracy and repeatability. Reliable monitoring – detection of process disturbances and reverse flow. Flexible installation – suitable for large dimensional range and circular pipes or rectangular ducts.
  Insertion version for DN 80 to 1500 (3 to 60"). Bidirectional measurement; high measuring performance. Patented drift-free sensor with SIL 2.

• Transmitter features

  Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology.
  Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access. Remote display available.

• Nominal diameter range

  DN 80 to 1500 (3 to 60")

• Wetted materials

  Materials for insertion tube
  Stainless steel, 1.4404 (316/316L)
  Process connections, process coupling
  Stainless steel, 1.4404 (316/316L)
  Sensing element
  Unidirectional
  Stainless steel, 1.4404 (316/316L)
  Alloy C22, 2.4602 (UNS N06022);
  Bidirectional
  Stainless steel, 1.4404 (316/316L)
  Reverse flow detection
  Stainless steel, 1.4404 (316/316L)
  Clamping rings
  PEEK
  PVDF
  1.4404 (316/316L)
  Flat ring seal
  EPDM
  FKM

• Measured variables

  Massflow, temperature, standard volume flow, volume flow, Free air delivery, velocity, heat flow, energy flow, density

• Max. measurement error

  Gas: 1.0% o.r. (10 to 100% o.f.s.), 0.1% o.f.s. (1 to 10% o.f.s.)

• Measuring range

  20 to 733501 kg/h (44 to 1669340 lb/h)

• Max. process pressure

  -0.5 to 20 bar_g (-7.25 to 290 psi_g)

• Medium temperature range

  -40 °C to +180°C (-40 °F to +356°F)

• Ambient temperature range

  -40 to 60°C (-40 to 140°F)
  Optional:
  Transmitter: -50 to 60°C (-50 to 140°F),
  Sensor: -60 to 60°C (-60 to 140°F)

• Transmitter housing material

  Aluminium, AlSi10Mg, coated
  Polycarbonate

• Degree of protection

  IP66/67, Type 4X enclosure

• Display/Operation

  4-line backlit display with touch control (operation from outside)
  Configuration via local display and operating tools possible
  Remote display available

• Outputs

  3 outputs:
  4-20 mA HART (active/passive)
  4-20 mA (active/passive)
  Pulse/frequency/switch output (active/passive)
  Relay output

• Inputs

  Status input
  4-20 mA input

• Digital communication

  HART, Modbus RS485

• Power supply

  DC 24V
  AC 100 to 240V

• Hazardous area approvals

  ATEX, cCSAus, IECEx, NEPSI, JPN, UK Ex, EAC

• Product safety

  CE, C-tick

• Functional safety

  Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

• Metrological approvals and certificates

  Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
  Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a

• Pressure approvals and certificates

  CRN

• Material certificates

  3.1 material
  NACE MR0175/MR0103
