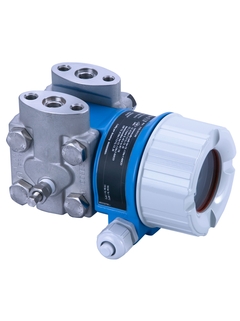

PMD55 Differential pressure Deltabar

Field of application

The Deltabar PMD55 differential pressure transmitter with piezoresistive sensor and welded metallic membrane is typically used in process or environmental applications for continuous measurement of pressure differences in liquids, vapors and gases. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 / IEC 61511.

For level, volume or mass measurement in liquids, differential pressure monitoring, e.g. of filters and pumps as well as flow measurement (volume or mass flow) in conjunction with primary elements in gases, vapors and liquids.

• Process connections: Threads

• Process temperature: -40 to 85°C (-40 to 185°F)

• Measuring ranges: 0.5mbar to 40bar (0.0072 to 600psi)

• Accuracy: ±0.1%, "Platinum" ±0.075% (optional)

• International explosion protection certificates, SIL

Benefits

• Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus

• Easy process adaptation to impulse line high-pressure/low-pressure change via electric switch on the main electronics

• Compact design and modular concept for easy replacement of display or electronics

• Process pressure up to SIL2, certified to IEC 61508 and IEC 61511

• Global usage thanks to the widest range of approvals for industries and applications

• Measuring principle

  Differential pressure

• Product headline

  Digital transmitter with metallic measuring diaphragms
  Compact size
  Modular transmitter
  Long-term stability

• Max. measurement error

  0,1%
  "PLATINUM" 0,075%

• Max. process pressure

  10mbar...40bar
  (0.15...580psi)

• Medium temperature range

  Temperature gradient from pressure piping

• Display/Operation

  Option

• Outputs

  4...20mA HART

• Digital communication

  HART

• Hazardous area approvals

  ATEX, FM, CSA, IECEx, INMETRO, NEPSI, TIIS

• Functional safety

  SIL

• Material certificates

  NACE MR0103
  NACE MR0175
  EN10204-3.1
