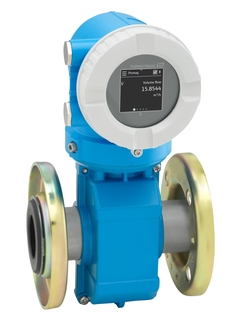

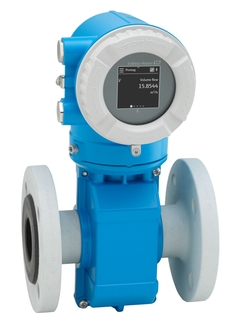

5WBB Proline Promag W 10 electromagnetic flowmeter

Field of application

Thanks to its international approvals (e.g. for drinking water), Promag W serves a wide variety of applications. It is available as both compact or remote version. With its straightforward hard- and software design, Promag W 10 simplifies every step in its life cycle from engineering to servicing at usual Endress+Hauser quality. Heartbeat Technology ensures measurement reliability and compliant verification.

• The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity.

• Suitable for elementary measurement tasks such as raw water intake.

Device properties

• International drinking water approvals

• Degree of protection IP68 (Type 6P enclosure)

• System integration with HART, Modbus RS485

• Flexible operation with app and optional display

Benefits

• Reliable measurement at constant accuracy with 0 x DN inlet run without pressure loss

• Flexible engineering – sensor with fixed or lap-joint process connections

• Application fitness – EN ISO 12944 corrosion protection for underground or underwater installation

• Improved plant availability – sensor compliant with industry-specific requirements

• Optimum usability – operation with mobile devices and SmartBlue app or display with touch screen

• Simple, time-saving commissioning – guided parameterization in advance and in the field

• Integrated verification – Heartbeat Technology

• Measuring principle

  Electromagnetic

• Product headline

  Flowmeter for basic water and wastewater applications with easy-to-use operation concept.
  Reliable measurement at constant accuracy with 0 x DN inlet run without pressure loss.
  Suitable for elementary measurement tasks such as raw water intake.

• Sensor features

  Flexible engineering – sensor with fixed or lap-joint process connections. Application fitness – EN ISO 12944 corrosion protection for underground or underwater installation. Improved plant availability – sensor compliant with industry-specific requirements.
  International drinking water approvals. Degree of protection IP68 (Type 6P enclosure). International drinking water approvals. Installation length: DVGW/ISO conform.

• Transmitter features

  Optimum usability – operation with mobile devices and SmartBlue app or display with touch screen. Simple, time-saving commissioning – guided parameterization in advance and in the field. Integrated verification – Heartbeat Technology.
  System integration with HART, Modbus RS485. Flexible operation with app and optional display.

• Nominal diameter range

  DN 25 to 3000(1 to 120")

• Wetted materials

  Liner material hard rubber: 0 to +80 °C (+32 to +176 °F)
  Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
  Liner material PTFE: –20 to +90 °C (–4 to +160 °F)
  Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022)

• Measured variables

  Volume flow, conductivity, mass flow

• Max. measurement error

  Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)

• Measuring range

  0.5 m3/h to 263000 m3/h (2.5gal/min to 1665 Mgal/d)

• Max. process pressure

  PN 40, Class 300, 20K

• Medium temperature range

  Liner material hard rubber: 0 to +80 °C (+32 to +176 °F)
  Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
  Liner material PTFE: –20 to +90 °C (–4 to +160°F)

• Ambient temperature range

  -40 to 60°C (-40 to 140°F)

• Sensor housing material

  DN 25 to 300 (1 to 12"): AlSi10Mg, coated
  DN 350 to 2000 (14 to 78"): Carbon steel with protective varnish

• Transmitter housing material

  Polycarbonat; AlSi10Mg, coated

• Degree of protection

  Compact version: IP66/67, type 4X enclosure
  Sensor remote version (standard): IP66/67, type 4X enclosure
  Sensor remote version (option): IP68, type 6P enclosure, with protective varnish according to EN ISO 12944 C5-M/Im1/Im2/Im3

• Display/Operation

  LCD display with touch & auto rotate

• Outputs

  4-20 mA HART (active/passive), Pulse/frequency/switch output
  Modbus RS485, 4-20 mA

• Digital communication

  HART, MODBUS RS485

• Power supply

  DC 24 V
  AC 100 to 230 V
  AC 100 to 230 V / DC 24 V (non-hazardous area)

• Hazardous area approvals

  CSA, GP, KC

• Metrological approvals and certificates

  Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
  Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)

• Pressure approvals and certificates

  CRN, PED

• Material certificates

  3.1 material

• Hygienic approvals and certificates

  Drinking water approvals: ACS, KTW/W270, NSF 61, WRAS BS 6920
