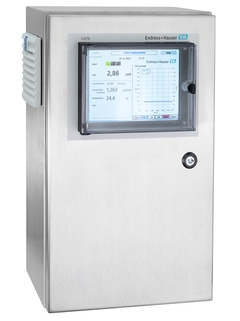

CA78 Low-range TOC analyzer

Field of application

Total organic carbon (TOC) content strongly influences the quality of ultrapure water. A high TOC concentration can cause damage of water purification systems or compromise the required water quality. The CA78 online TOC analyzer provides continuous, accurate TOC monitoring ensuring consistently high quality of the ultrapure water used in your production processes. You gain full control of your product yield and quality.

The CA78 TOC analyzer is perfectly suited to TOC monitoring of ultrapure water in the following industries:

• Power & Energy

• Semiconductor production

• Bodycare

• Disinfectant production

With the following process conditions:

• Conductivity: 2 µS/cm (standard), 10 µS/cm (order option)

• pH range: Neutral

Benefits

• Real-time overview of water quality:
  The online TOC analyzer measures continuously with a fast response time (t₉₀) of 50 seconds. This enables you to react immediately to potential water contamination and to protect your product effectively.

• CA78 uses proven UV oxidation and differential conductivity measurement which is the most-established method for reliable TOC trace analysis in ultrapure water.

• The analyzer's maintenance-friendly design in combination with our worldwide service network offers you complete support for the measuring point, from commissioning throughout the entire lifespan of the device.

• Perfect adaption to your process needs:
  Select between the high-precision 2 µS/cm conductivity version and the robust version that tolerates 10 µS/cm. Reduce your investment costs by the optional 3 channel configuration.

• Measuring principle

  Differential conductivity

• Characteristic

  Total carbon (TOC) analyzer for trace levels

• Measuring method

  TOC determination by UV digestion and measurement of the differential conductivity

• Size

  Housing:
  500 x 290 x 200 mm
  19.68 x 11.41 x 7.87 in

• Design

  Stainless steel housing;
  IP 42 (standard), IP54 (optional)

• Process temperature

  < 50 °C (122 °F)

• Ambient temperature

  –5 to 50 °C (23 to 122 °F)

• Process pressure

  max. 0.5 bar (7.25 psi)

• Sample flow rate

  Min. 5 ml/min (0.17 fl.oz/min)

• Consistency of the sample

  max. conductivity 2 μS/cm, optional: max. 10 μS/cm; particle free

• Specials

  UV reactor with continuous function monitoring

• Application

  Determination of total carbon in ultrapure water applications, e.g. in the power or semiconductor industry, that meet the following conditions:
  Conductivity < 10 μS/cm
  pH range: neutral

• Power supply

  100/240 V AC, 47 - 63 Hz

• Output / communication

  0/4 to 20 mA, galvanically isolated

• Input

  1 to optional 3 measuring channels
  Optinonal control input 24 V (for 1 channel instruments)

• Measurement range

  0.5 to 1 000 μg/l (ppb)
