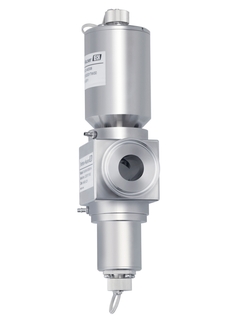

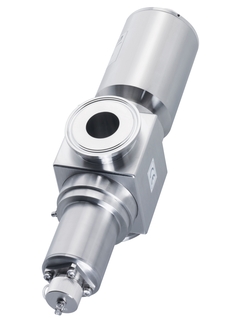

OUSAF12 Suspended solids and color sensor

Field of application

OUSAF12 is an optical sensor for the inline detection of suspended solids and product interphases in many industries. It supports you with reliable absorbance measurements to accurately control the quality of products and processes, and to improve production efficiency. OUSAF12 is ready for all kinds of environments, from hazardous areas (ATEX, FM) to hygienic processes (CIP/SIP).

The OUSAF12 sensor measures turbidity or color absorption for:

• Quality control / Purity monitoring

• Filter monitoring

• Condensate monitoring

• Turbidity in breweries

• Heat exchanger leakage detection

• Turbidity in brine

With its international explosion-protection approvals, such as ATEX and FM, the sensor is suitable for hazardous area use.

Benefits

• Better product quality monitoring in pharmaceutical and chemical processes

• Cost savings and reduced product loss thanks to fast interphase detection

• Low-maintenance sensor with long service life and stable operation

• Color-independent measurement

• Easy and liquid-free verification

• Suitable for cleaning-in-place (CIP) and sterilization-in-place (SIP)

• Approved for hazardous area use

• Measuring principle

  Colorimetry

• Application

  Color measurement, measurement of suspendend solids, phase separation

• Measurement range

  0 to 2.5 AU
  0 to 50 OD (depending on optical pathlength)

• Material

  Sensor housing: Stainless Steel 316L

• Process temperature

  0 to 90 °C (32 to 194 °F) continuous
  Max. 130 °C (266 °F) for 2 hours

• Process pressure

  Max. 100 bar abs (1450 psi)
  (depending on flow through assembly)

• Ex certification

  ATEX II 2G Ex db IIC T5 Gb
  FM Cl.1, Div. 1, Group B, C, D

• Ingress protection

  IP 65 (NEMA 4)

• Additional certifications

  FDA
