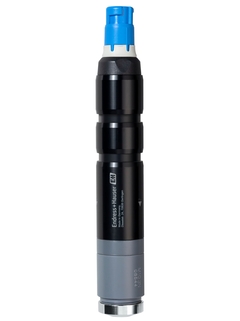

CCS58D Digital ozone sensor Memosens

Field of application

Memosens CCS58D is a low-maintenance sensor for ozone. It provides high-precision measurement with an almost exclusive specificity for ozone, ensuring reliable disinfection monitoring. The robust sensor membrane with its high surfactant resistance makes the sensor suitable for diverse applications, e.g. bottle cleaning. Thanks to Memosens digital technology, CCS58D combines maximum process and data integrity with simple operation and provides the perfect basis for predictive maintenance.

Memosens CCS58D is an ozone sensor for skid builders and end customers. It measures reliably in:

• Drinking water - to ensure sufficient disinfection

• Process water - to provide hygienic packaging and bottling

• Wastewater - to guarantee safe discharge water

Benefits

• Almost exclusive specificity for ozone ensures reliable measured values for safe disinfection processes.

• Robust membrane technology guarantees high surfactant resistance and optimum suitability for cleaning processes such as bottle cleaning.

• Integrated Heartbeat Technology provides, for example, an electrolyte counter for predictive, application-specific maintenance intervals.

• Connection to the Liquiline multiparameter transmitter allows for easy combination with other relevant parameters of liquid analysis such as pH and ORP.

• Fast commissioning is ensured by factory-calibration and plug & play installation of the sensor.

• Measuring principle

  Ozone

• Application

  Drinking water - ensures adequate disinfection
  Process water - for hygienic packaging and filling
  Wastewater - to ensure safe discharge water

• Characteristic

  Amperometric measurement of dissolved ozone

• Measurement range

  0 to 2 mg/l

• Measuring method

  - closed 2 electrode system
  - conversion of ozone into a signal current in nA
  - signal current is proportional to the concentration of ozone
  - the measurement is not pH dependent

• Design

  - exchangeable, electrolyte-filled membrane cap
  - working and counter electrode
  - adaptable shaft for flexible installation in assemblies

• Material

  Sensor shaft: PVC
  Membrane: Silicone
  Membrane cap: PVC

• Dimension

  Diameter: 25 mm (0.98 in)
  Length: 161 mm (6.34 in)

• Process temperature

  +0 to 45 °C (32 to 110 °F), non freezing

• Process pressure

  1 bar (14.5 psi), 2 bar (29 psi) absolute

• Temperature sensor

  10k NTC integrated (Memosens)

• Connection

  Inductive, digital connection head with Memosens
