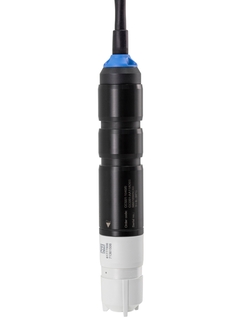

CCS51 Analog free chlorine sensor

Field of application

CCS51 is a robust, low-maintenance sensor for free chlorine. It provides high-precision measurement with long-term stability in drinking water, pool and process water and ensures consistent disinfection monitoring even at low water volumes. The analog free chlorine sensor features extremely fast response times guaranteeing efficient process control and safe processes. CCS51 ensures continuity for the installed base of analog free chlorine measuring points.

CCS51 is an analog free chlorine sensor for skid builders and end customers. It measures reliably in:

• Drinking water - to ensure reliable disinfection

• Process water - for hygienic and safe packaging and bottling of products

• Utilities - to detect the absence or presence of free chlorine

• Pool water - to dose disinfectant efficiently

Benefits

• Fast response time (t₉₀ < 25 s) provides accurate process view and enables prompt reaction to process changes as well as efficient process control.

• Increased process safety: precise and long-term stable measurement ensures consistent process monitoring and allows for individually adapted disinfectant dosing.

• The low-maintenance, amperometric sensor reduces the cost of ownership of the measuring point, particularly compared to colorimetric measuring systems.

• Connection to the Liquisys chlorine transmitter ensures continuity for the installed base of analog free chlorine measuring points.

• Measuring principle

  Free chlorine

• Application

  Drinking water - to ensure reliable disinfection
  Process water - wide range of application due to large measuring range
  Food - to secure absence/presence of free chlorine
  Pool water -efficient dosing thanks to precise measurement

• Characteristic

  Amperometric measurement of dissolved free chlorine

• Measurement range

  Trace: 0 to 5 mg/l HOCl
  Standard: 0 to 20 mg/l HOCl

• Measuring method

  - Closed, membrane covered measuring cell
  - Reduction of free chlorine at the cathode

• Design

  Closed amperometric 2-electrode measuring cell with PVDF membrane

• Material

  Sensor shaft: POM
  Membrane: PVDF
  Membrane cap: PVDF

• Dimension

  Diameter: 25 mm (0.98 in)
  Length: 161 mm (6.34 in)

• Process temperature

  +0 to 55 °C (32 to 130°F), non-freezing

• Process pressure

  1 bar (14.5 psi)

• Temperature sensor

  10k NTC

• Connection

  analog with fixed cable
