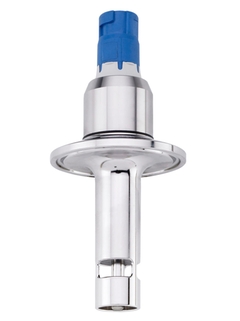

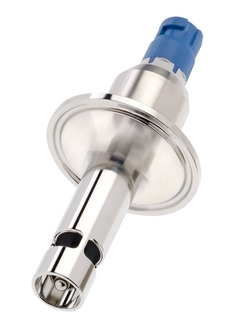

CLS16D Digital conductivity sensor Condumax

Field of application

Condumax CLS16D is a high-end conductivity sensor with certified hygienic design. It measures with highest precision providing you with reliable data for optimum process and product quality. Numerous certificates and various hygienic process connections ensure the perfect fit for your process. Condumax CLS16D is not the latest Memosens generation. To get information on the new Memosens CLS16E sensor with extended functionality, click here.

Condumax CLS16D measures conductivity in pure and ultrapure water applications for the monitoring and control of:

• Ion exchangers

• Reverse osmosis

• Distillation

• Electro-deionizing

• Water for injection (WFI)

With its international explosion protection approvals, such as ATEX, FM, CSA and NEPSI, the digital sensor is suitable for hazardous area use.

Benefits

• Highest precision and measuring accuracy

• Hygienic design certified by EHEDG

• Certified biocompatibility according to USP class VI and FDA compliance of all wetted materials

• Sterilizable and autoclavable

• Quality certificate stating the individual cell constant

• Logging of sensor-specific data for easy traceability and predictive maintenance

• Convenient maintenance strategy with Memobase Plus for easy calibration and sensor management

• Measuring principle

  Conductive

• Application

  Pure and ultrapure water, pharmaceutical industry

• Characteristic

  Hygienic 2-electrode conductivity sensor

• Measurement range

  k=0,1: 0,04 to 500 µS/cm

• Measuring principle

  Conductivity cell

• Design

  Hygienic 2-electrode conductivity sensor with coaxially arranged electrodes, electropolished stainless steel and FDA sealing material; sterilizable

• Material

  Isolation: PEEK
  Electrode: polished stainless steel 1.4435
  Sealing: Isolast (FFKM) FDA conform

• Dimension

  Electrode diameter: 17 mm (0.66 inch)
  Electrode length: 54 mm (2.13 inch)

• Process temperature

  -5 to 120 °C (23 to 248 °F)
  For Sterilizsation: max. 150 °C at 5 bar
  (Max. 302 °F at 73 psi)

• Process pressure

  13 bar at 20 °C (188 psi at 68 °F)
  9 bar at 120 °C (130 psi at 248 °F)

• Temperature sensor

  NTC 30K

• Connection

  Process connection: Varivent, Neumo, Clamp
  Cable: Memosens connector

• Ingress protection

  IP68

• Additional certifications

  Material certification 3.1
  EHEDG certified, hygienic design, CoC ASME BPE
  Conformity to cGMP derived requirements
  ASME BPE
  FDA approved
  Regulation (EC) No.
  1935/2004
  China Food
