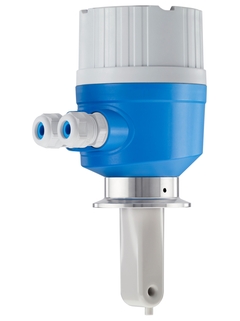

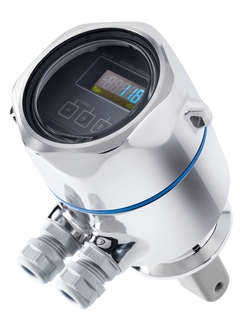

Compact conductivity device Smartec CLD18

Field of application

Smartec CLD18 is the cost-effective solution for all applications in beverage plants where small tubes are used and where the toroidal measurement is used as a switch function. The combination of a transmitter and a sensor is interference-free, easy-to-use and features a hygienic design that protects your products and processes from contamination. Smartec CLD18 ensures the Overall Equipment Effectiveness (OEE) of your plant thanks to fast and reliable CIP and optional IO-Link protocol.

The hygienic Smartec CLD18 measures toroidal conductivity in beverage applications:

• Control of CIP processes in the return channel

• Concentration control in remaking of CIP cleaning agents

• Product monitoring in pipe systems, bottling plants

• Beer - Push water interphase

• Beer - Water cut for brewing lines

• Leakage monitoring

It features the following protocols and interfaces:

• 0/4...20mA

• IO-Link (optional)

Benefits

• Unique hygienic design avoids contamination

• 3-A approval

• Compliant with EG 2023/2006 and 1935/2004

• Suitable for cleaning-in-place (CIP)

• Smart and easy integration into your plant infrastructure thanks to optional IO-Link protocol

• Compact design permits installation in small tubes without restricting the flow

• Measuring principle

  Inductive

• Application

  Food and beverage industries

• Characteristic

  Specifically intended for use in beverage industry applications and especially suitable for:
  Phase separation, control of CIP, concentration control, product monitoring, leakage monitoring

• Measurement range

  200 µS/cm to 1000 mS/cm
  Cell constant k: 11.0 1/cm

• Measuring principle

  Inductive conductivity measurement

• Design

  Hygienic design with FDA certified virgin PEEK

• Material

  Sensor: PEEK
  Process connection 1.4435 (316L)
  Seal: EPDM

• Process temperature

  -10 °C to 110 °C (14 °F to 230 °F)
  Sterilization: max. 130 °C at 6 bar abs up to 60 min
  (Max. 266 °F at 87 psi up to 60 min)

• Process pressure

  13 bar abs up to 50 °C (188.5 psi up to 122 °F)
  7.75 bar abs at 110 °C (112 psi at 230 °F)
  6.0 bar abs at 130 °C for max. 60 minutes
  (87 psi at 266 °F for max. 60 minutes)

• Temperature sensor

  Pt 1000 (class B)

• Connection

  Dairy pipe, aseptic-fitting DN40 and DN50, Clamp 2"
  ISO 2852, SMS-2", Varivent N DN 40-125
  Thread G1 1/2 SS, G1 1/2 PVC , Union nut 2 1/4 Inch PVC

• Ingress protection

  IP69

• Output / communication

  0/4...20mA
  IO-Link (option)

• Additional certifications

  3A, FDA, EHEDG
  EC Regulation No. 1935/2004
