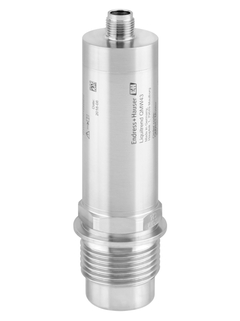

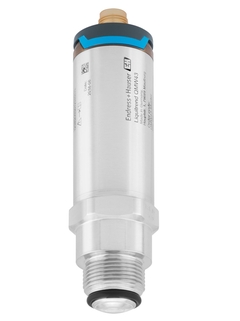

QMW43 Liquid Analysis Physical Medium Properties Liquitrend

Field of application

The Liquitrend QMW43 is developed for the food and beverage industry to help customers to ensure product safety, improve quality and increase the availability of installations. Base your decisions on the unique and reliable measurement of buildup thickness and conductivity via the combination of conductive and capacitive measuring modes.

• Cleaning optimization, blending homogeneity monitoring and media differentiation of liquids, suspensions, pasty media etc.

• For the use in storage, mixing and process vessels with or without an agitator, pipes and equipment periphery

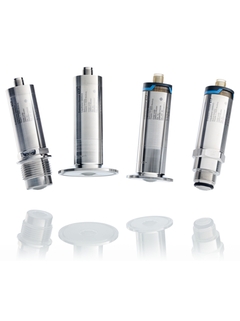

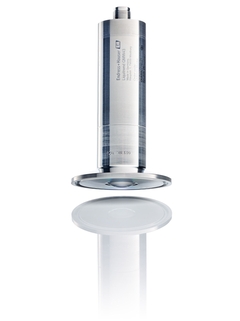

• Process connections: Threads and hygienic connections

• Sensor design: Flush-mounted, surface roughness Ra<0.76µm

• Temperature: -20 to +100°C (-4 to +212°F), CIP/SIP to 150°C (302°F) for 1 hour

• Certificates and declarations: 3A, FDA, EHEDG and EG1935/2005, EN10204- 3.1

Benefits

• Reliable, repeatable and accurate measurement of buildup thickness and conductivity regardless of media type

• Conductive as well as capacitive measuring cycles, the device automatically detects the most accurate measuring mode and uses it automatically

• Verification of cleaning status without the need to open the tank

• Compact and flush-mounted stainless-steel sensor offers the perfect insight into the conditions in pipelines or tanks at all critical locations

• Plug and Play - simple commissioning without presettings

• Hygienic safety by Design and material traceability are a matter of course

• Integrated digital communication option via IO-Link

• Measuring principle

  Medium consistency

• Measuring method

  Capacitive- conductive

• Application

  Continuous inline measurement of build-up and liquid conductivity

• Supply voltage

  10…30 VDC
  IO-Link: 18…30 VDC

• Measurement range

  Conductivity:
  0 µS/ cm...100 mS/ cm
  Build-up thickness:
  0 mm…10 mm

• Accuracy

  Build-up:
  <= 1% of measuring range
  Conductivity:
  0...2 mS/ cm: <= 5% of reading
  2...20 mS/ cm: <= 7% of reading
  20...50 mS/ cm: <= 10% of reading
  50...100 mS/ cm: <= 15% of reading

• Ambient temperature

  -40°C…+70°C (-40°F...+158°F)

• Process temperature

  -20°C…+100°C
  (-4°F...+212°F)
  +150°C (+302°F) for 1h

• Process pressure

  Vacuum...25 bar
  (Vacuum...362.5 psi)

• Output / communication

  4...20 mA
  Frequency
  IO-Link

• Connection

  Threads G1", G3/4", M24,
  Tri-Clamp ISO2852, DIN11851

• Ex certification

  No Ex certificates
  CSA C/US General Purpose

• Additional certifications

  EN10204- 3.1
  EHEDG
  3-A
  EG1935/2004
  CRN approval

• Options

  Customer specific configuration
  Cleaned from oil and grease
  Surface roughness test
  Welding- and process adapters
