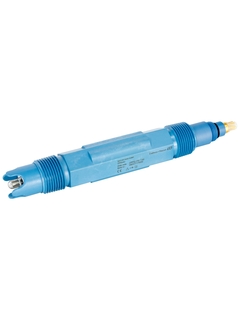

CPF82 Analog ORP sensor Orbipac

Field of application

Orbipac CPF82 is the analog simple solution for ORP measurement in harsh environments. Its large, dirt-repellent PTFE diaphragm guarantees low maintenance while its integrated assembly saves space and time during flow or immersion installation.

Orbipac CPF82 is the robust ORP sensor for treatment of industrial water and wastewater and for processes in mining industries. It monitors:

• Inlet and outlet

• Neutralization

• Flotation

• Leaching

Benefits

• Suitable for flow and immersion installation

• Long-time stable: Second electrolyte bridge for better protection against electrode poisoning ions such as S^2- or CN^- ions

• Robust polymer housing protects against mechanical damage

• Measuring principle

  Sensor ORP / Redox

• Application

  Water, waste water, process, galvanic

• Characteristic

  Resistent against electrolyte poisoning and dirt repellent gel-electrode including process connection NPT 3/4".

• Measurement range

  -1500mV - -1500mV

• Measuring principle

  Gel-compact electrode with double chamber reference system, potassium nitrate bridge electrolyte and PTFE-diaphragm, platinum pin

• Design

  Compact electrode in PPS housing with NPT3/4" process connection.

• Material

  PPS / glass / PTFE, platinum

• Dimension

  Length: 120´mm
  (4.68 inch)

• Process temperature

  -10°C - 110°C
  (14°F - 230°F)

• Process pressure

  max. 10 bar
  (145 psi)

• Connection

  TOP68 connection head

• Ingress protection

  IP68
