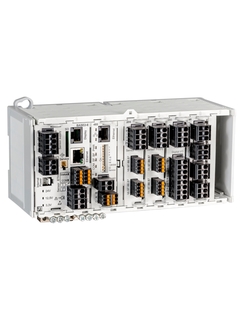

CM448R 8-channel transmitter Liquiline

Field of application

Liquiline CM448R allows you to connect up to 8 Memosens sensors of your choice from over 12 measurement parameters. With its compact design, it fits into any cabinet - and even offers inputs, outputs, controllers, and math modules, e.g. for control of sensor cleaning. The transmitter belongs to the Liquiline platform with standardized system integration, operation, and spare parts. Heartbeat Technology helps you find the ideal balance between measurement point availability and maintenance costs.

Liquiline CM448R is suitable for all industries and their utilities, such as:

• Food & Beverages

• Life Sciences

• Power & Energy

• Water & Wastewater

• Chemicals

• Marine

It features the following communication protocols and interfaces:

• 0/4...20 mA

• HART

• PROFIBUS DP

• Modbus RS485/RTU

• Modbus TCP

• EtherNet/IP

• PROFINET

• Webserver

The transmitter can be extended with a module whose explosion protection approvals, such as IECEx, ATEX, and CSA, allow the connection of sensors installed in hazardous areas.

Benefits

• Saves space, saves money:
  Small footprint, 8 channels in one device, saves space in cabinets – perfect for skids.

• High-speed installation:
  No cut-out in cabinet door, one-click DIN-rail mounting, minimized wiring.

• Simple and safe commissioning:
  Saving configuration on SD card enables fast set-up on duplicate installations.

• Easy to operate and service:
  Intuitive user interface, hot plug & play with pre-calibrated Memosens sensors, universal components fit all parameters.

• Process control from a distance:
  Integrated web server that allows the operator to remotely view diagnostic data, perform configurations, or access device parameters in any web browser - even via Smartphone.

• Higher availability, lower costs:
  Heartbeat Technology enables status-oriented maintenance and easy verification of the entire measuring point and helps to carry out optimization measures.

• Measuring principle

  Potentiometric

• Application

  Modular 4 wire controller
  Multichannel:1-8 digital channels for Memosens protocol
  Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
  8 sensors connectable in any combination
  Functionality modular extendable at any time
  Plug and play for modules and sensors

• Characteristic

  Robust plastic housing
  All non-ex applications

• Design

  8x Memosens input
  2...8x current output
  alarmrelay
  2x relay
  SD card for software update and copy & paste of setup

• Material

  Polycarbonate

• Dimension

  220 (8.66) x 100 (3.94) x 98 (3.86) mm (inch)

• Process temperature

  -20...55°C / 0...130°F

• Ingress protection

  IP20 transmitter
  IP66 optional Display

• Input

  1...8x Memosens digital input
  2x 0/4..20mA Input optional
  2..4x Digital input optional

• Output / communication

  2...8x 0/4...20 mA current outputs
  alarmrelay
  4x relay
  ProfibusDP
  Modbus RS485
  Modbus TCP
  Ethernet
