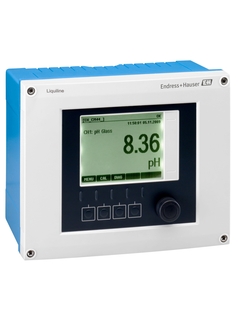

CM448 8-channel transmitter Liquiline

Field of application

The Liquiline CM448 transmitter allows you to connect up to 8 Memosens sensors of your choice from over 12 measurement parameters. It offers automatic sensor recognition, simple operation, and standardized spare parts with all other devices of the Liquiline platform. With its inputs, outputs, controllers, and math modules, you can even control cleaning systems or dosing pumps. Heartbeat Technology helps you find the ideal balance between measuring point availability and maintenance costs.

Liquiline CM448 is suitable for all industries and their utilities, such as:

• Food & Beverages

• Life Sciences

• Power & Energy

• Water & Wastewater

• Chemicals

• Marine

It features the following communication protocols and interfaces:

• 0/4...20 mA

• HART

• PROFIBUS DP

• Modbus RS485/RTU

• Modbus TCP

• EtherNet/IP

• PROFINET

• Webserver

The transmitter can be extended with a module whose explosion protection approvals, such as IECEx, ATEX, and CSA, allow the connection of sensors installed in hazardous areas.

Benefits

• Clever simplicity:
  One controller for all parameters and applications, intuitive user interface, automatic sensor recognition, hot plug & play with pre-calibrated Memosens sensors.

• Complete package:
  8 channels in one device provide the highest flexibility for every measuring task.

• Seamless system integration:
  Unique portfolio of communication standards suits every distributed control system (DCS).

• Simple and safe commissioning:
  Saving configuration on SD card enables fast set-up on duplicate installations.

• Process control from a distance:
  Integrated web server that allows the operator to remotely view diagnostic data, perform configurations, or access device parameters in any web browser - even via Smartphone.

• Higher availability, lower costs:
  Heartbeat Technology enables status-oriented maintenance and easy verification of the entire measuring point and helps to carry out optimization measures.

• Measuring principle

  Potentiometric

• Application

  Modular 4 wire controller
  Multichannel: 1 to 8 digital channels for Memosens protocol
  Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
  8 sensors connectable in any combination
  Functionality modular extendable at any time
  Plug and play for modules and sensors

• Characteristic

  Robust plastic housing
  All non-ex applications

• Design

  8x Memosens input, 2 to 8x current output,
  Alarmrelay, 2x relay, SD card for software update and copy & paste of setup

• Material

  Housing base: PC-FR
  Housing seal EPDM

• Dimension

  237 x 194 x 162 mm
  9.33 x 7.64 x 6.38 inch

• Process temperature

  -20 to 55 °C (0 to 130 °F)

• Ingress protection

  IP66 / IP67

• Input

  1 to 8x Memosens digital input
  2x 0/4 to 20mA Input optional
  2 to 4x Digital input optional

• Output / communication

  2 to 8x 0/4 to 20 mA current outputs, alarmrelay
  4x relay, ProfibusDP, Modbus RS485, Modbus TCP, Ethernet

• Additional certifications

  EAC, cCSAus
