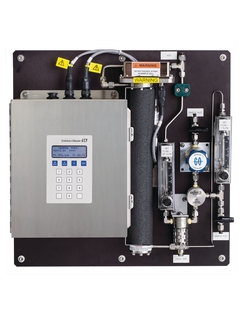

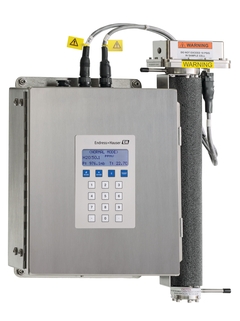

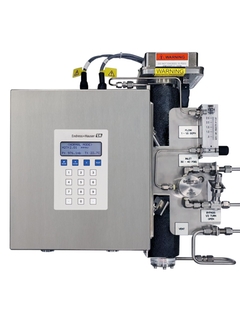

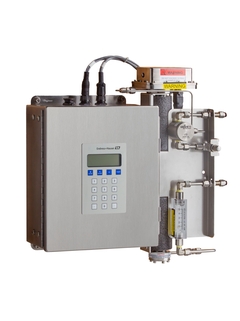

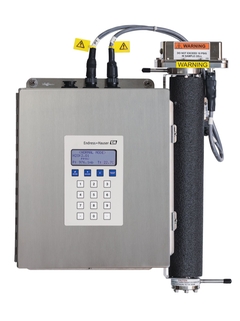

SS500 moisture analyzer

Extremely reliable and tailored to the needs of the natural gas industry

Field of application

Using patented tunable diode laser spectroscopy (TDLAS) technology, the SS500 analyzer is an economical choice for measuring H2O concentration in natural gas without coming into physical contact with the stream. The result is a sensor that does not suffer from contamination or drift due to vapor impurities such as glycol, methanol, or amines.

  • Natural gas quality measurements in production, storage, transportation, and distribution

  • Monitoring for natural gas pipelines, processing plants, compressor stations, gathering sites, and distribution quality

  • Suitable for use as a check-measurement device

  • Measurable ranges of up to 0-250 lb/mmscf (0-5275 ppm) H2O

Benefits

  • Economical real-time moisture measurements

  • Virtually maintenance-free

  • Reliable in harsh environments

  • Fast and accurate with no wet-up or dry-down delays

  • No contamination or drift due to vapor impurities such as glycol, methanol, amines, hydrogen sulfide, or mercaptans

  • NIST-traceable calibration with analog and serial outputs for remote monitoring

  • CSA certified for CSA Class 1, Division 2 or Class 1, Division 1

  • Measuring principle

    TDLAS

  • Product Headline

    An economical gas analyzer for moisture (H2O) in the natural gas industry. The sensor measures gas using tunable diode laser absorption spectroscopy (TDLAS) to determine the concentration of the gas without coming into physical contact with the stream. Option of simplified sample conditioning to reduce complexity of the analyzer system.

  • Channels

    1

  • Analyte and Measurement ranges

    H2O (Moisture):
    5 to 422 ppmv (minimum)
    5 to 2110 ppmv (maximum)

  • Measured Variables

    Concentration
    Dew Point
    Cell Pressure
    Cell Temperature

  • Ambient Temperature range

    -20 to 50°C (-4 to 122°F)

  • Operating Pressure range

    Inlet Pressure: 140 to 350 kPa (20 to 50 psig)
    Sample Cell: 700 to 1400 mbara

  • Analyzer Wetted materials

    316L stainless steel
    FKM O-Rings
    Glass

  • Power supply

    100 to 240 VAC, 50 to 60 Hz
    or
    9 to 16 VDC or 18 to 32 VDC - optional
    1 Amp maximum at 120 VAC
    1.6 Amps at 24VDC, 3.2 Amps at 12 VDC

  • Communication

    Analog Output: 1 or 2 4-20mA Isolated, 1200 ohms at 24 VDC max load
    Serial: RS232C
    Protocol: Modbus Gould RTU or Daniel RTU or ASCII
    Alarms: 2, General Fault and Concentration Alarms via Modbus and Analog Output(s)

  • Housing materials

    Electronics: 304 stainless steel (Class I Division 2)
    Sample System Panel: anodized aluminum

  • Hazardous area approvals


    CSA Class I, Division 2
    CSA Class I, Zone 2

  • Degree of protection

    Type 3R (Class I Division 2)
