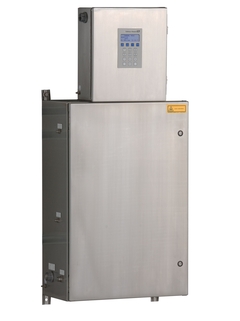

SS3000e dual channel gas analyzer

SS3000E Continuous measurement for monitoring HzO and COz innatural gas pipelines

• Measuring principle

  TDLAS

• Product Headline

  Dual channel gas analyzer for moisture (H2O) channels and carbon dioxide (CO2). The sensor measures gas using tunable diode laser absorption spectroscopy (TDLAS) to determine the concentration of the gas without coming into physical contact with the stream. Includes a heated enclosure for the sample conditioning system.

• Channels

  2

• Analyte and Measurement ranges

  H2O (Moisture):
  0 to 100 ppmv (minimum)
  0 to 5000 ppmv (maximum)
  CO2 (Carbon Dioxide):
  0 to 5% volume (minimum)
  0 to 50% volume (maximum)

• Measured Variables

  Concentration
  Moisture Dew Point
  Cell Pressure
  Cell Temperature

• Ambient Temperature range

  -20 to 50°C (-4 to 122°F)
  Optional: -10 to 60°C (14 to 140°F)

• Operating Pressure range

  Inlet Pressure: 140 to 350 kPa (20 to 50 psig)
  Sample Cell: 700 to 1400 mbara or 700 to 1700 mbara (optional)

• Analyzer Wetted materials

  316L stainless steel
  FKM O-Rings
  Glass

• Power supply

  100 to 240 VAC, 50 to 60 HZ
  or
  18 to 24 VDC - optional
  1 Amp maximum at 120 VAC, 1.6 Amps at 24 VDC (unheated)
  2 Amps maximum at 120 VAC (heated)

• Communication

  Analog Output: Two 4-20mA Isolated, 1200 ohms at 24 VDC max load
  Serial: RS232C - standard, RS485 and Ethernet - optional
  Protocol: Modbus Gould RTU or Daniel RTU or ASCII
  Digital Outputs: 2, General Fault and Concentration/Assignable Alarm

• Housing materials

  Electronics: 304 or 316L stainless steel
  Sample System Enclosure: 304 or 316L stainless steel

• Hazardous area approvals

  CSA Class I, Division 2
  CSA Class I, Zone 2

• Degree of protection

  Type 4X
