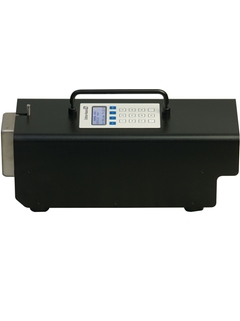

SS1000 portable H2O analyzer is virtually maintenance-free

SS1000 portable H2O analyzer is virtually maintenance-free

• Measuring principle

  TDLAS

• Product Headline

  Portable, light weight, easy to handle, and battery-powered moisture (H2O) analyzer, used to verify measurements and to spot-check when other methods provide questionable results. The sensor measures gas using tunable diode laser absorption spectroscopy (TDLAS) to determine the concentration of the gas without coming into physical contact with the stream.

• Channels

  1

• Analyte and Measurement ranges

  H2O (Moisture):
  0 to 100 ppmv (minimum)
  0 to 5000 ppmv (maximum)

• Measured Variables

  Concentration
  Dew Point
  Cell Pressure
  Cell Temperature

• Ambient Temperature range

  -20 to 50°C (-4 to 122°F)

• Operating Pressure range

  Inlet Pressure: 140 to 350 kPa (20 to 50 psig)
  Sample Cell: 700 to 1400 mbara

• Analyzer Wetted materials

  316L stainless steel
  FKM O-Rings
  Glass

• Power supply

  100 to 240 VAC, 50 to 60 Hz - standard 12-Volt
  Sealed Lead-Acid Battery
  Approx. 8 hours usage time per charge
  0.5 Amps at 120 VAC during recharging

• Communication

  Analog Output: 1 or 2 4-20mA Isolated, 1200 ohms at 24 VDC max load (optional)
  Serial: RS232C
  Protocol: Modbus Gould RTU or Daniel RTU or ASCII

• Housing materials

  Anodized Aluminum

• Hazardous area approvals

  None

• Degree of protection

  None
