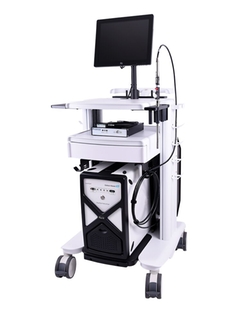

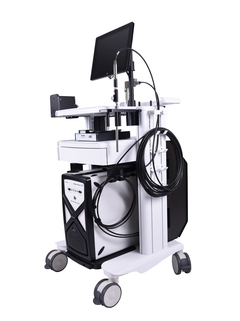

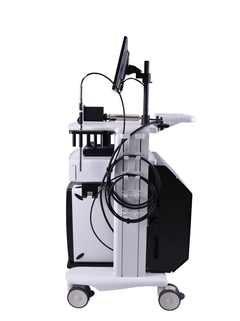

Raman Rxn2 mobile cart

Field of application

The easy mobility of the medical-grade ergonomic Raman Rxn2 cart accessory is especially useful in process development where one instrument may be needed to support several ongoing projects. The Raman Rxn2 mobile cart includes a secure analyzer mounting location, convenient built-in probe and optic storage, a mount for the routine-analysis sample compartment, handy fiber cable storage, and mounting provisions for the instrument control HMI. Available with all Raman Rxn2 configurations.

• Pharmaceutical: reaction chemistry, yield crystallization, polymorph, blending, drying, granulations

• Biopharmaceutical: bioprocess monitoring and control, PAT/QbD applications, cell culture, fermentation, downstream operations, cGLP/cGMP compatible

• Chemical: Polymerization, extrusion monitoring, polymer blending, catalysis investigation

• Food & Beverage: Zonal heterogeneity, fermentation

Benefits

• Semi-custom medical-grade design

• Durable all powder coated (white) aluminum/steel construction​

• Easy mobility via 5” lockable, dual-wheel swivel casters​

• Integrated wire routing into columns​

• Integrated power strip​ & rear power entry point

• Convenient rear probe outrigger

• Added 4” drawer for extra storage

• Measuring principle

  Raman spectroscopy

• Unit dimensions (width x height x depth)

  Cart:
  685 × 1022 (tabletop) × 753 mm
  26.97 × 40.24 (tabletop) × 29.65 inch
  Shipping crate:
  902 x 1549 x 1276 mm
  35.52 x 60.99 x 50.24 inch

• Weight

  Cart: 59 kg / 130 lbs
  Shipping crate: 179 kg / 395 lbs, depending on cart and accessory configuration

• Materials of construction

  Cart: Aluminum and steel with durable powdercoat finish
  High density polyethylene (HDPE) and Delrin probe storage and accessory shelves
  Polyurethane wheel treads with polyamide locking casters
  Shipping crate: Heat treated wood, ISPM 15 compliant and marked

• Analyzer compatibility

  Raman Rxn2 analyzer

• Wiring

  Pre-wired for embedded Raman Rxn2 installation including: analyzer, touchscreen HMI, and calibration accessory
  Pre-wired for non-embedded RamanRxn2 installation including: analyzer, Raman Runtime HMI or other computer/monitor, and calibration accessory

• Power supply

  Universal 100-240 VAC, 50-60 Hz, 10 A max with IEC C14 inlet
  3000 mm / 118.12 inch US mains power cord included

• Network connectivity

  Two RJ45 10/100/1000 Ethernet connectors for analyzer automation protocols
